Dear Sir

• High speed motor.Full Auto.Rotary platform lace machine.
• The power could be adjustable according to different material.
• High power,Frequency is tracking automatically.

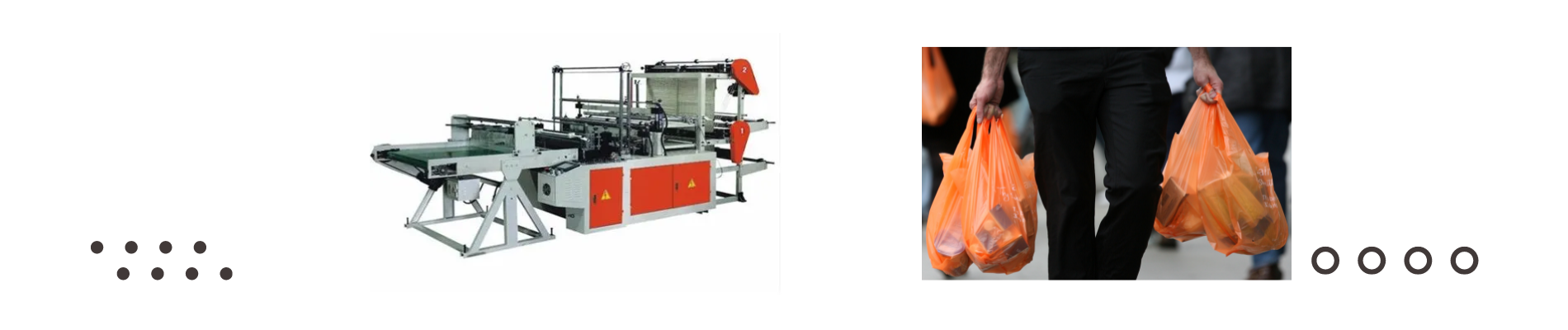

GI -35 Biodegradable carry bag making machine

BARRAL	Made of Nitriding Steel Single Piece Constructions ground and honed to high surface finish and close tolerance Material;-41 B Mosko
Treatment	Gas Nitriding with Tangastion Carbon Coated
Heating	Heating is Two Zones Out of which zone 2 is cooled by 0.25 hp Blower
Heating Load	3.4 kw
SCREW	Made of Nitriding steel harden and Ground with special Mixing head and shear element.
Diameter	35 MM
L / D Ratio	27;1
Treatment	Gas Naitriding with Tangastion Carbon Coated
Capacity	22 to 25 kg/ Hr .of Bio Degradable (works on solid bed Pumping, Outputs can vary ( ± ) 15% depending on melt index, bulk Density, hardness, co-efficient of friction and shape of pellets)
Frequency Drive	7.5 H.P ( Make :- ABB ) AC Variable Drive of standard make the Drive is digital and self diagnostic.
Gear Box	110 CD Helical Gear Box with integral trust bearing. The lubrication is thought oil splashing. ( Make :- ZEAL )
Pulley	Suitable as required.
DIE	Made of alloy steel ground polished Plated the lip size is 100 MM ( 4 " )
Heat Zone	3 Nos
Heat Load	3.9 kw.

Candle Filter	A special Candle Filter would be provided This would ensure filter Changed-overtime reduced 100%. One does note need to disturb the die or extruder while changing the filter.
COOLING RING :	One Cooling ring suitable for 100 MM Punch lip size. Cooling Ring made from alumiim alloys and has a adjustable Lip size. Cooling Ring made from air flow control.
Blower :	A High capacity medium pressure Blower Provided 2 H.P Blower. With Frequency Drive. A damper value is provided on the suction side for control of air quantity.
TAKE OFF :	Fabricated from Heavy channel and angle . Machine Tower Having a Height of 12 feet.
Bubble Basket :	A Variable Height and variable diameter ring is fixed over the tower for holding the bubble Propety.
Nip Rolls :	The Nip rolls can handle a tubing size 18" Inch. The Nip Roll Size 20" .They are actuated by Two pneumatic Cylinders and a solenoid value.
Drive :	The drive is thought 1.0 H.p Geared. AC Motor Controlled by variable frequency Drive by 1 H.p.
Speed :	10 to 80 mts/min.
Flattening Board :	The board is made up to wooden slats fixed over Pipe Frame the boards can be finely adjusted to get wrinkle free tubing.
Winder :	Single Station Surface winder provided with two winding shafts
Drive :	The drive is through 1 H.p Tourque Motor with ISI Brand.
CONTROL PANAL :	The Control Panel is made of heavy sheet metal and is front opening type with powder coting.
Temperature Controller :	5 Temperature controllers and 1 water temperature indicators with Multispan / Select.
Other Starters :	All the other starters are suitable provided.

S.No.	Product	Amount
1	EI 35 Blown Film Plant	4,80,000
2	28" Cutting & Selling with Double Decker & Servo	4,20,000
3	Bag Punching Machin with All Die Punch for Hundle Cut	80,000
4	2 H.P Air Compressor With Double Cylinder	42,000
5	Granules Mixture Machine 50 K.g Capesity with 10 H.p ISI Motor	75,000
6	Online Single Colour Printer	28,000
7	Rotating Die ( Option In Monolayer )	1,25,000
	Total Amount	12,50,000
	GST/IGST ( 18% )	2,25,000.00
	Total	14,75,000.00
