Dear Sir

• High speed motor.Full Auto.Rotary platform lace machine.
• The power could be adjustable according to different material.
• High power,Frequency is tracking automatically.

GI-45-Biodegradable-carry-bag-making-machine

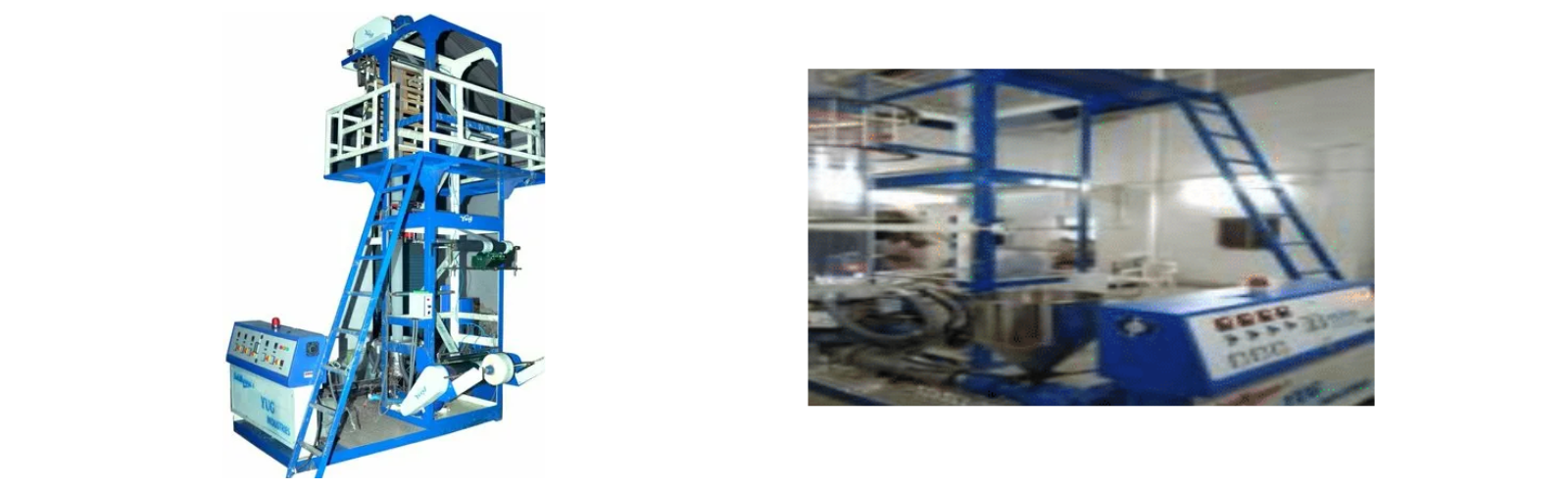

AN ADVANCED BLOWN FILM TECHNOLOGY

SPECIFICATION of EI45 MM STARCH , PLA , Based 100 % Bio Degradable & LDPE, LLDPE

BARRAL	Made of Nitriding Steel Single Piece Consrtuctions ground and honed to high surface finish and close tolerance Materal;-41 B Mosko
Treatment	Gas Nitriding with Tangastion Carbon Cotted
Heating	Heating is Two Zones Out of which zone 2 is cooled by 0.25 hp Blower
Heating Load	3.4 kw
SCREW	Made of Nitriding steel harden and Ground with special Mixing head and shear element.
Diameter	40 MM
L / D Ratio	27;1
Treatment	Gas Naitriding with Tangastion Carbon Cotted
Capacity	35 to 38 kg/ Hr .of Bio Degradable (works on solid bed Pumping, Outputs can vary ( ± ) 15% depending on melt index, bulk density, hardness, co-efficient of friction and shape of pellets)
Frequency Drive	10 H.P ( Make :- ABB ) AC Variable Drive of standard make the drive is digital and self diagnostic.
Gear Box	125 CD Helical Gear Box with integral trust bearing. The lubrication is thought oil splashing. ( Make :- ZEAL )
Pulley	Suitable as required.
DIE	Made of alloy steel ground polished Plated the lip size is 125 MM ( 5 " )
Heat Zone	3 Nos
Heat Load	4.2 kw.

Candle Filter	A special Candle Filter would be provided This would ensure filter Changed-overtime reduced 100%. One does note need to disturb the die or extruder while changing the filter.
COOLING RING :	One Cooling ring suitable for 125 MM Punch lip size. Cooling Ring made from alumiim alloys and has a adjustable Lip size. Cooling Ring made from air flow control.
Blower :	A High capacity medium pressure Blower Provided 3 H.P Blower. With Frequency Drive. A damper value is provided on the suction side for control of air quantity.
TAKE OFF :	Fabricated from Heavy channel and angle . Machine Tower Having a Height of 13 feet.
Bubble Basket :	A Variable Height and variable diameter ring is fixed over the tower for holding the bubble Propety.
Nip Rolls :	The Nip rolls can handle a tubing size 24" Inch. The Nip Roll Size 26" .They are actuated by Two pneumatic cylinders and a solenoid value.
Drive :	The drive is thought 1.0 H.p Geared. AC Motor Controlled by variable frequency Drive by 1 H.p.
Speed :	10 to 80 mts/min.
Flattening Board :	The board is made up to wooden slats fixed over Pipe Frame the boards can be finely adjusted to get wrinkle free tubing.
Winder :	Single Station Surface winder provided with two winding shafts
Drive :	The drive is through 1 H.p Tourque Motor with ISI Brand.
CONTROL PANAL :	The Control Panel is made of heavy sheet metal and is front opening type with powder coting.
Temperature Controller :	5 Temperature controllers and 1 water temperature indicators with Multispan / Select.
Other Starters :	All the other starters are suitable provided.

Terms & Conditions:

S.No.	Product	Amount
1	EI40 Blown Film Plant	5,90,000
2	28" Cutting & Selling with Double Decker & Servo	4,15,000
3	Bag Punching Machine with All Die Punch for Hundle Cut	95,000
4	3 H.P Air Compressor With Double Cylinder	52,000
5	Granules Mixture Machine 50 K.g Capesity with 10 H.p ISI Motor	95,000
6	Online Single Colour Printer	45,000
7	Rotating Die ( Option In Monolayer )	1,75,000
	Total Amount	---
	GST/IGST ( 18% )	2,64,060.00
	Total	17,31,060.00
